Automotive Checking Fixture Project 83
This automotive checking fixture is built for repeatable positioning and dimensional inspection of sheet-metal or structural parts in production quality control.

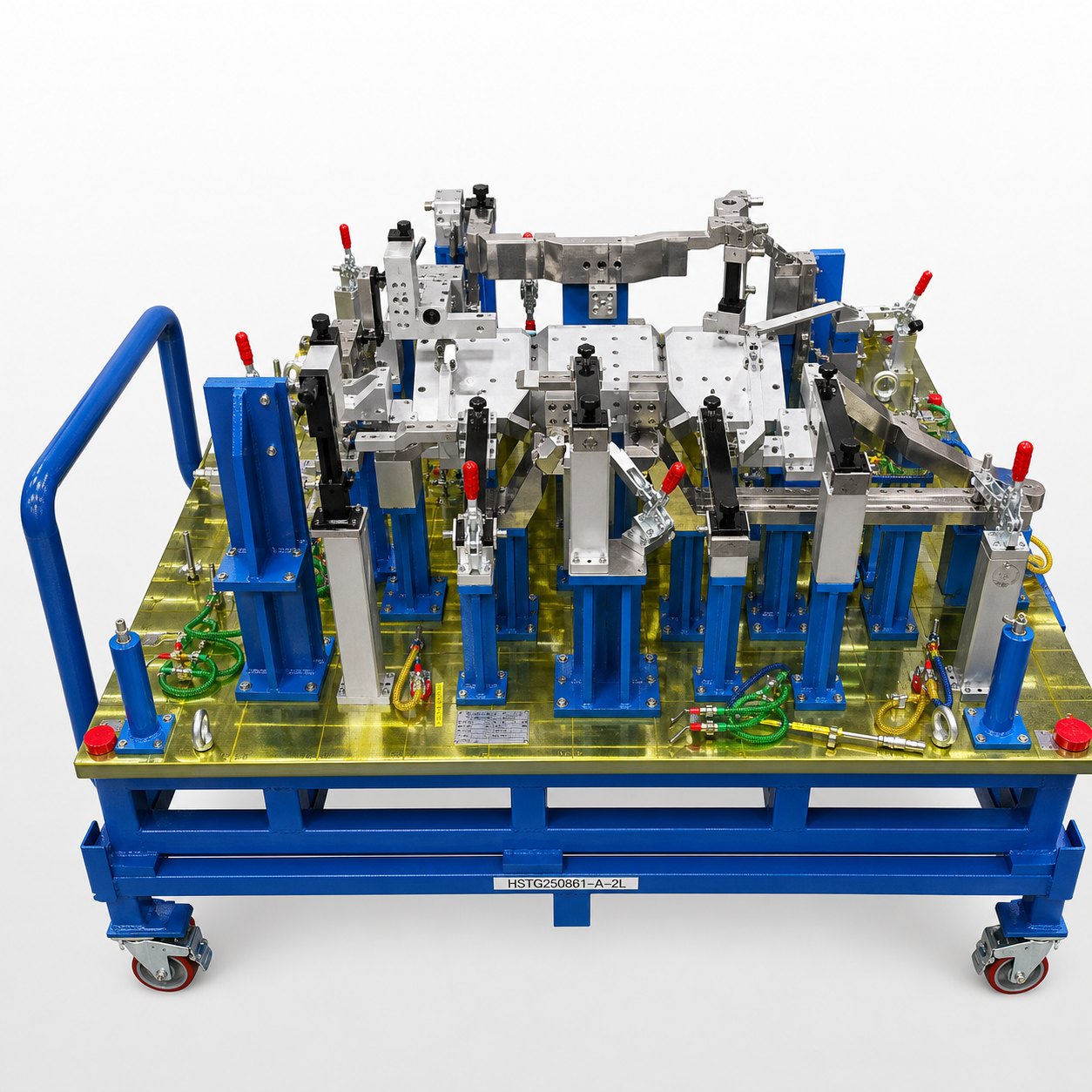

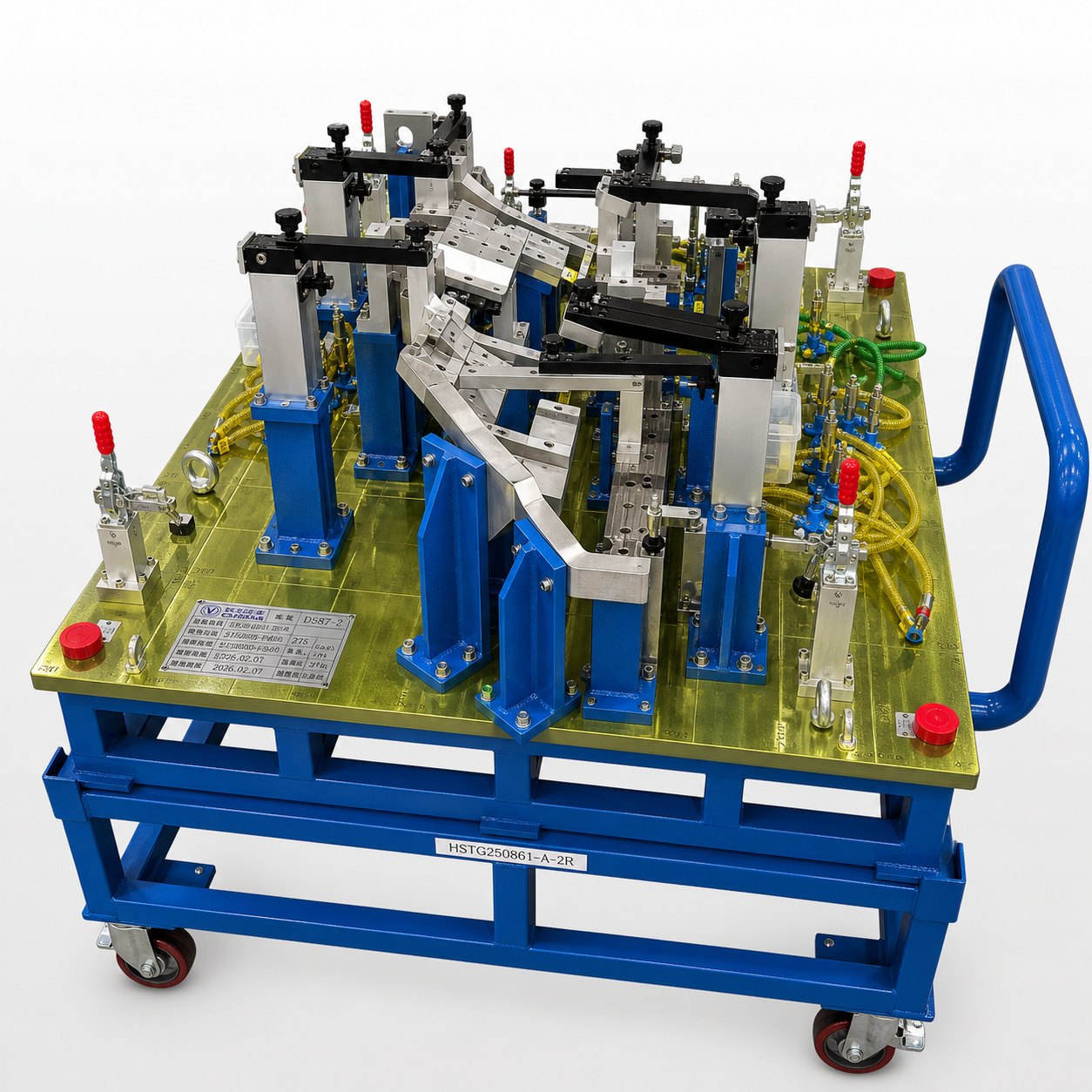

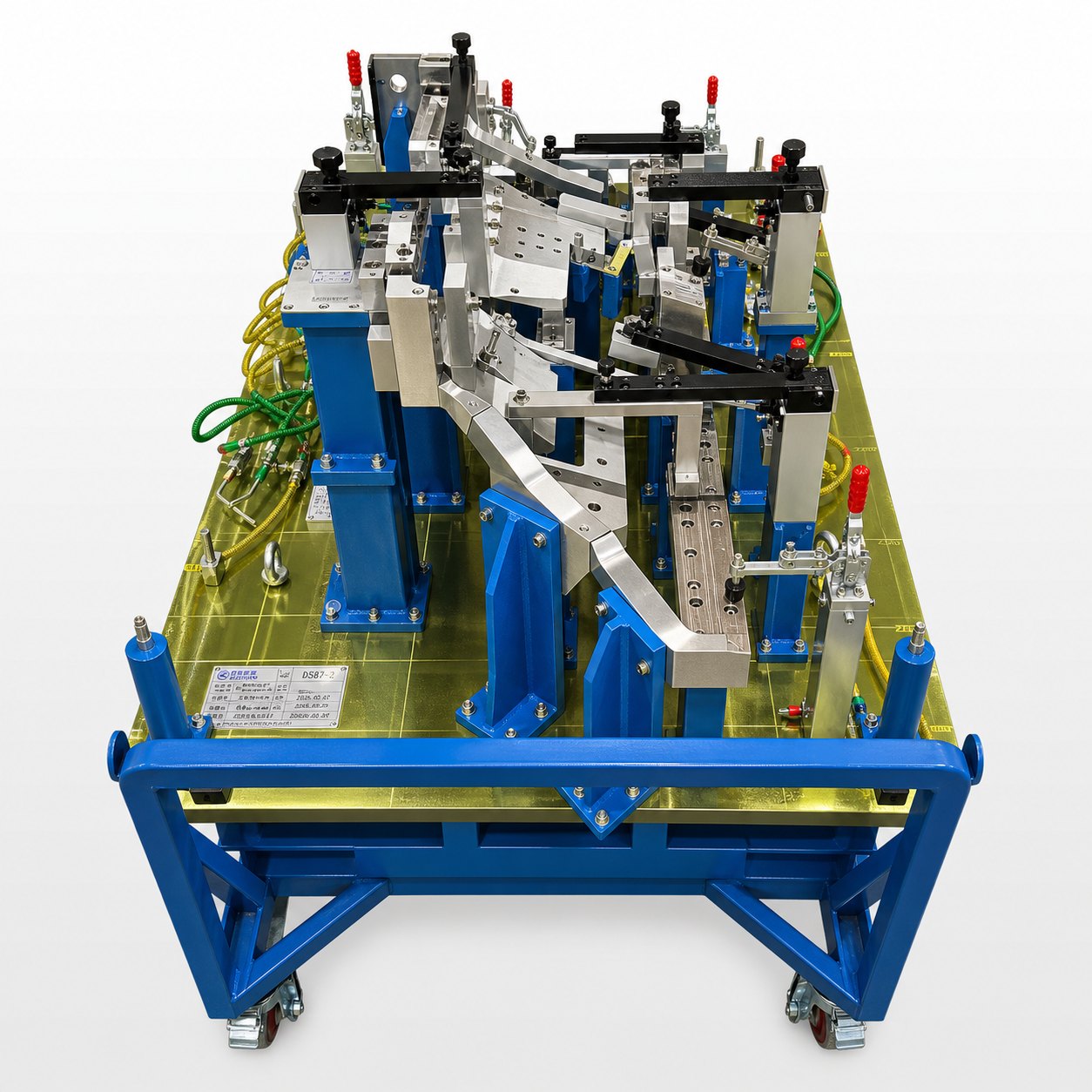

Product Photos
Application
Suitable for automotive BIW, underbody, bracket, panel, trim, or welded assembly inspection where consistent part positioning and repeatable quality judgement are required.
Key Features
- Dedicated locating points and clamping arrangement for stable part placement
- Clear shop-floor inspection layout with accessible check areas
- Robust base structure suitable for repeated production and quality use
- Supports customer-specific datum logic, profile checks, and visual confirmation
- Designed for practical operation during fixture debugging, inspection, and acceptance review
Need a Similar Checking Fixture?
Contact Wingsoars for fixture review, design support, manufacturing, debugging, and inspection-oriented project delivery.
Send Us Your Drawing for Fixture Review
Share your 2D/3D drawing, part data, product type, and project requirements. Wingsoars engineering team can review the fixture concept and provide practical feedback for quotation.
