Automotive Checking Fixture Misc Sample EF0649D9
This automotive checking fixture is designed for repeatable part positioning, inspection reference confirmation, and shop-floor quality control.

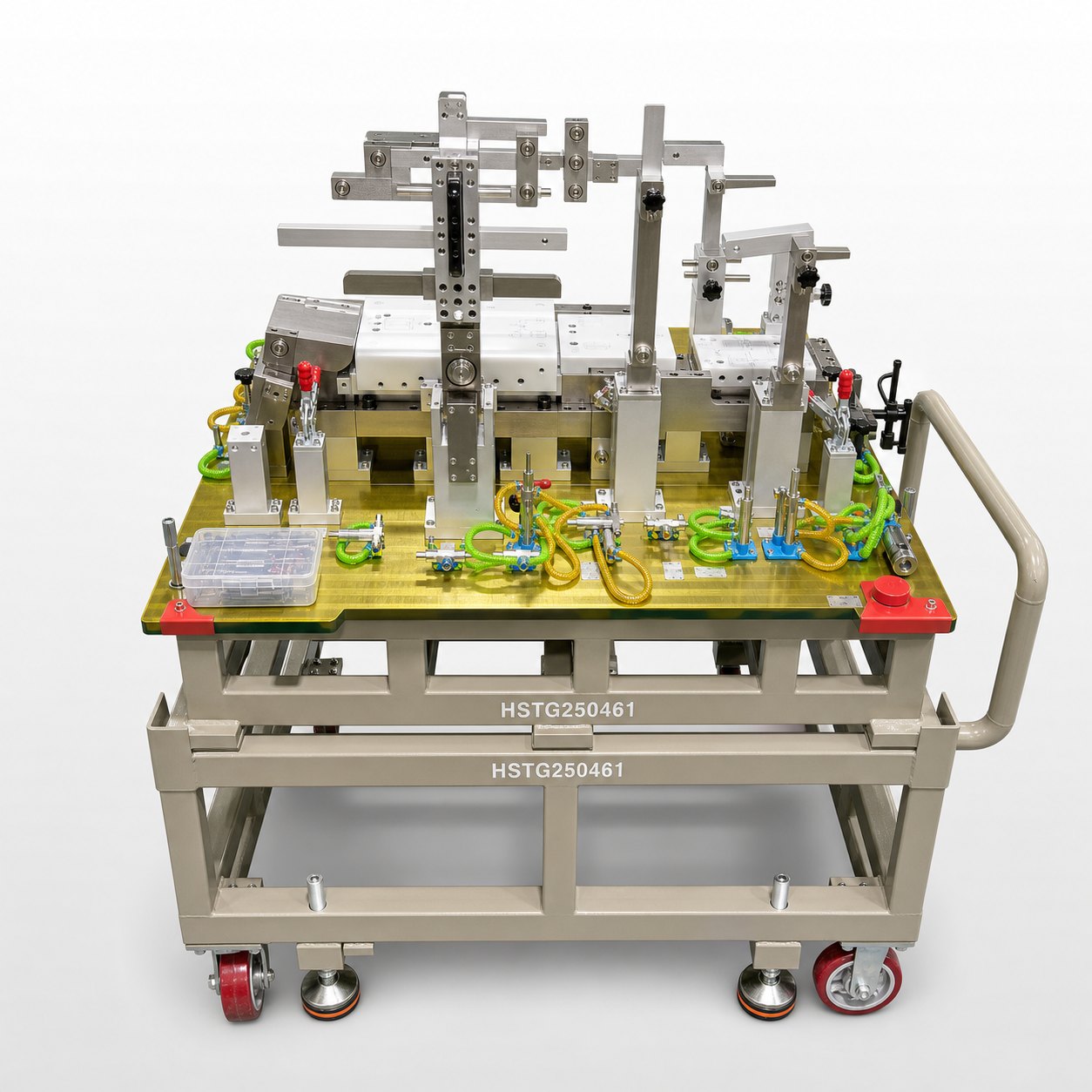

Product Photos
Application
Suitable for automotive BIW, sheet-metal parts, brackets, plastic parts, trim components, or welded assemblies where stable locating and repeatable inspection judgement are required.
Key Features
- Dedicated locating and support layout for stable part placement
- Practical clamping and accessible inspection areas for production use
- Robust fixture structure for repeated quality checks and acceptance review
- Supports customer-specific datum logic, profile checks, and visual confirmation
- Can be customized for drawings, GD&T requirements, and on-site inspection workflow
Need a Similar Checking Fixture?
Contact Wingsoars for fixture review, design support, manufacturing, debugging, and inspection-oriented project delivery.
Send Us Your Drawing for Fixture Review
Share your 2D/3D drawing, part data, product type, and project requirements. Wingsoars engineering team can review the fixture concept and provide practical feedback for quotation.
